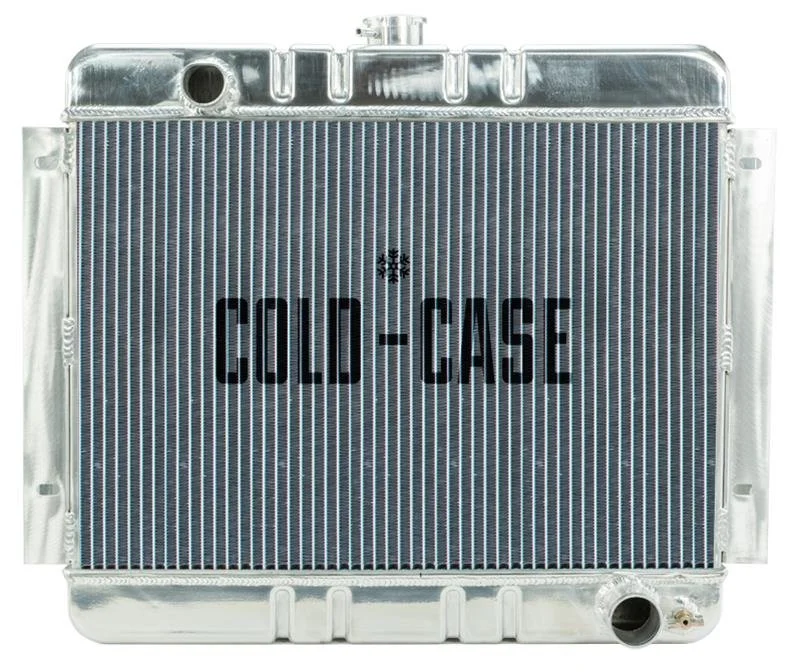

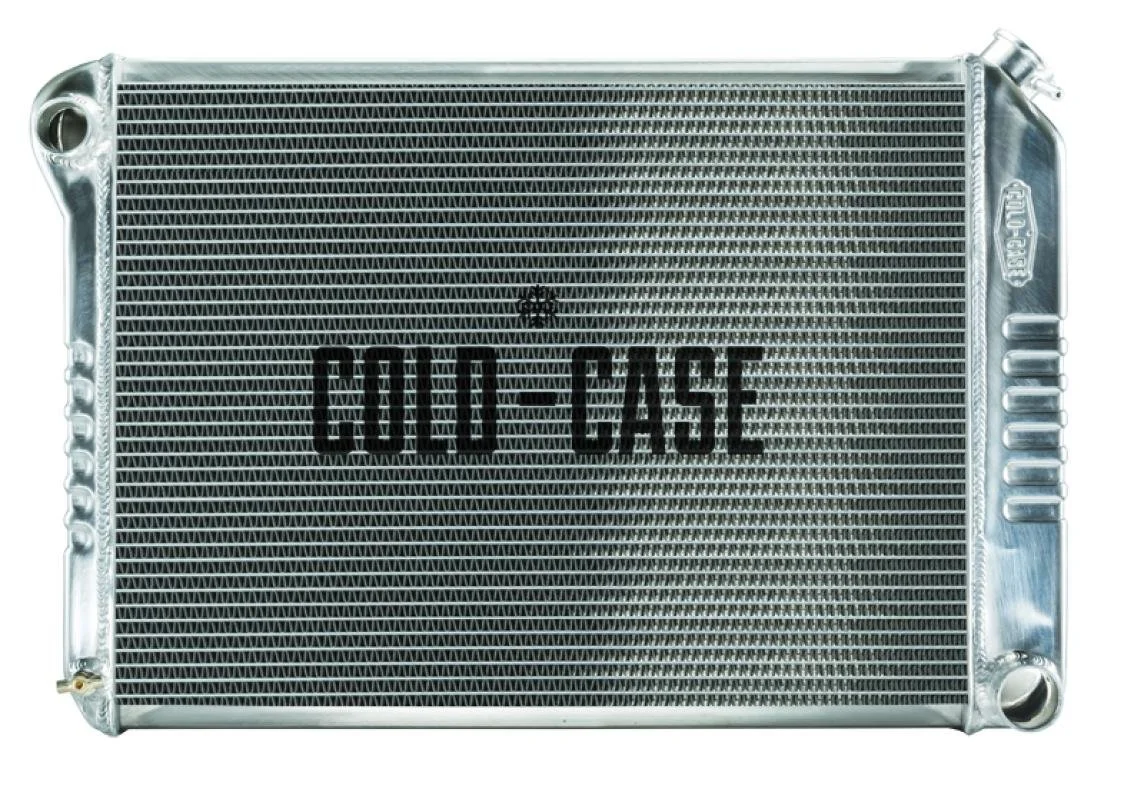

1968-1979 Chevrolet Nova Aluminum Performance Radiator. MT Transmission. Big Block version.
This radiator sits in saddle mounts. Comes without brackets. For bracket version, see CHC11.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
Polished OE style tanks
(2) 1.25 inch Tubes
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For Manual transmission
Direct fitment for 68-79 Nova w/ Big Block
Old Part Number: RPE548ATF
Radiator Specs
Core Height 16.85 inch
Core Width 23 inch
Overall Height 19 inch
Overall Width 28.35 inch
Overall Thickness 3 inch
Tubes (2) 1.25 inch Tubes
Upper Hose 1.50 inch
Lower Hose 1.75 inch
