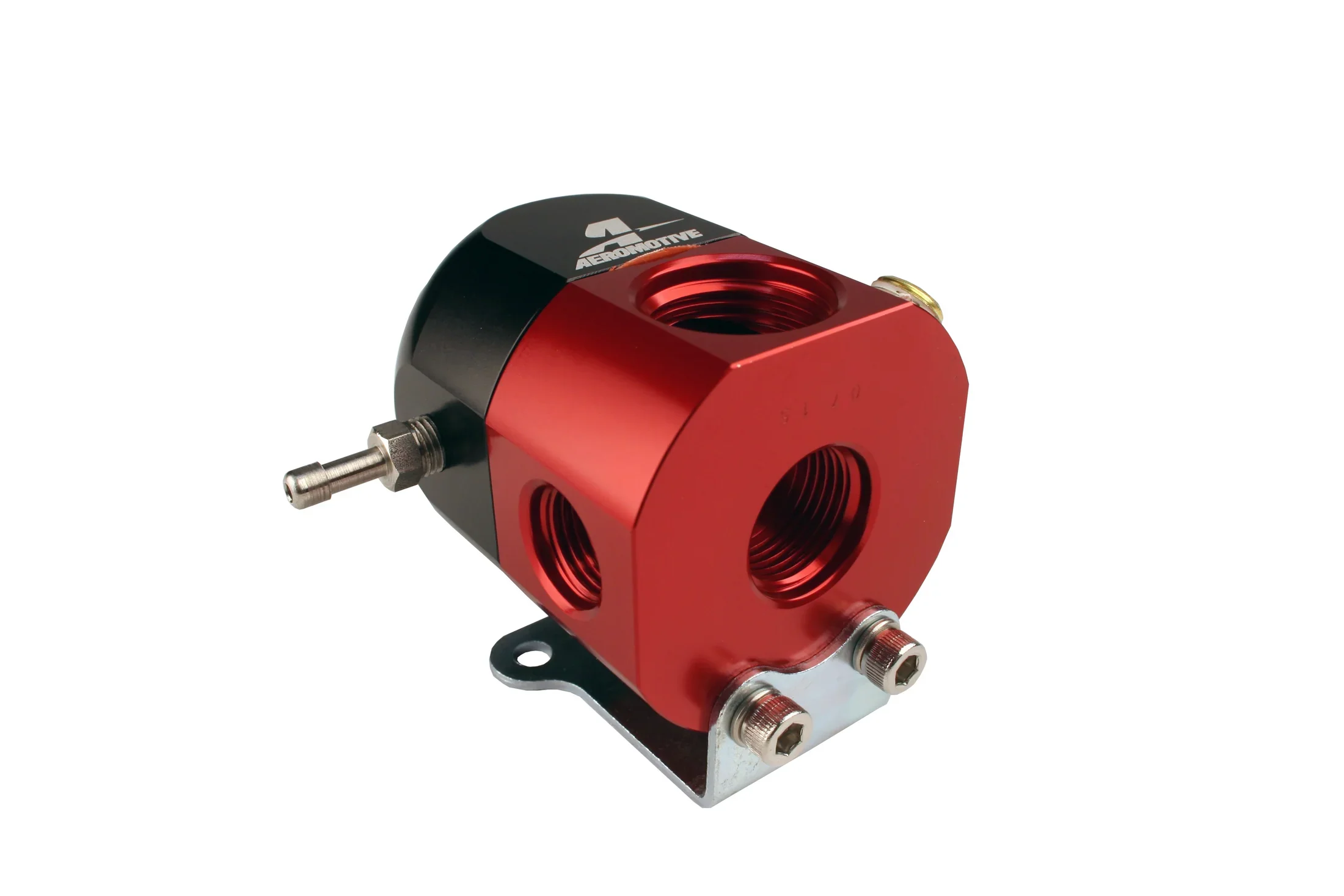

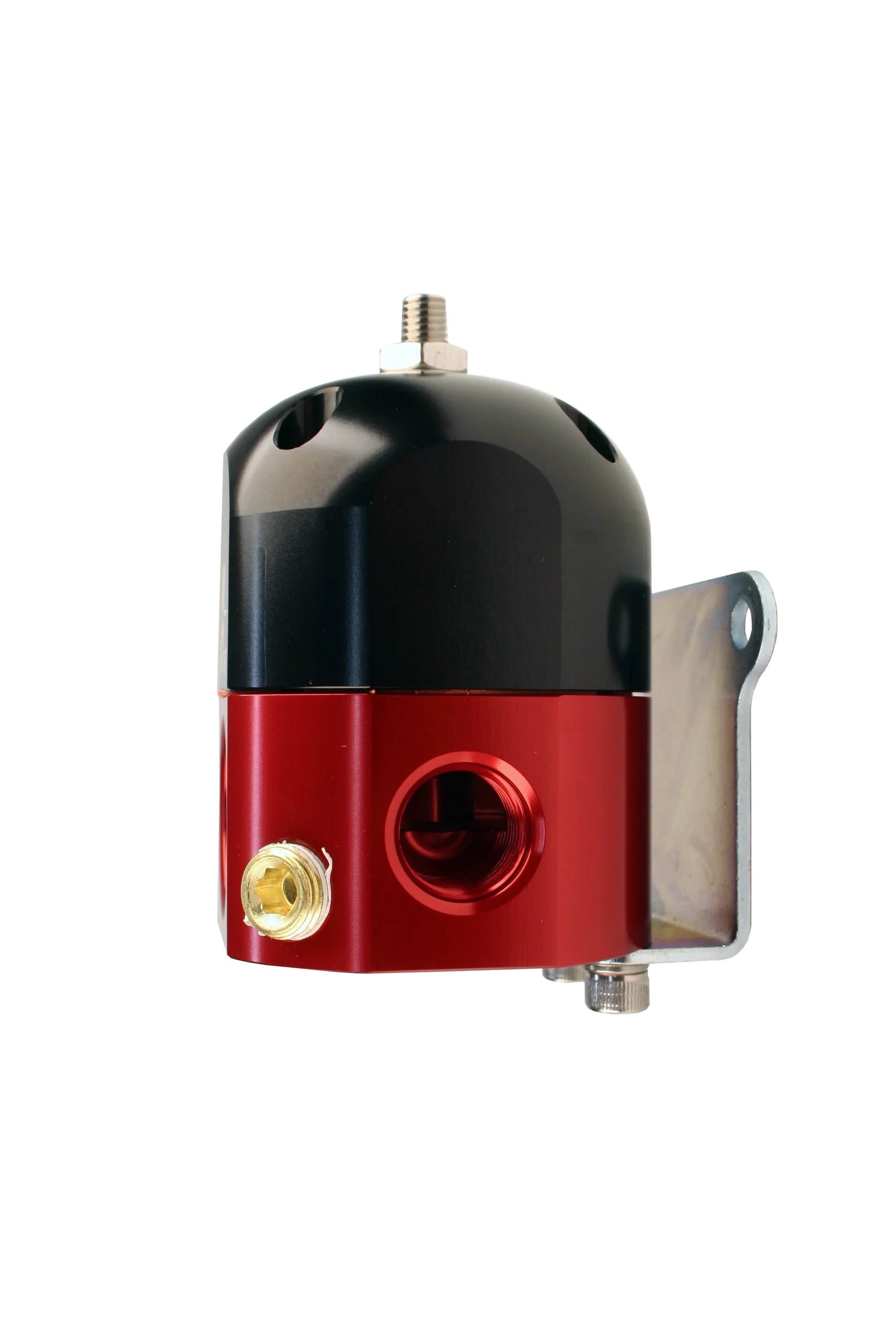

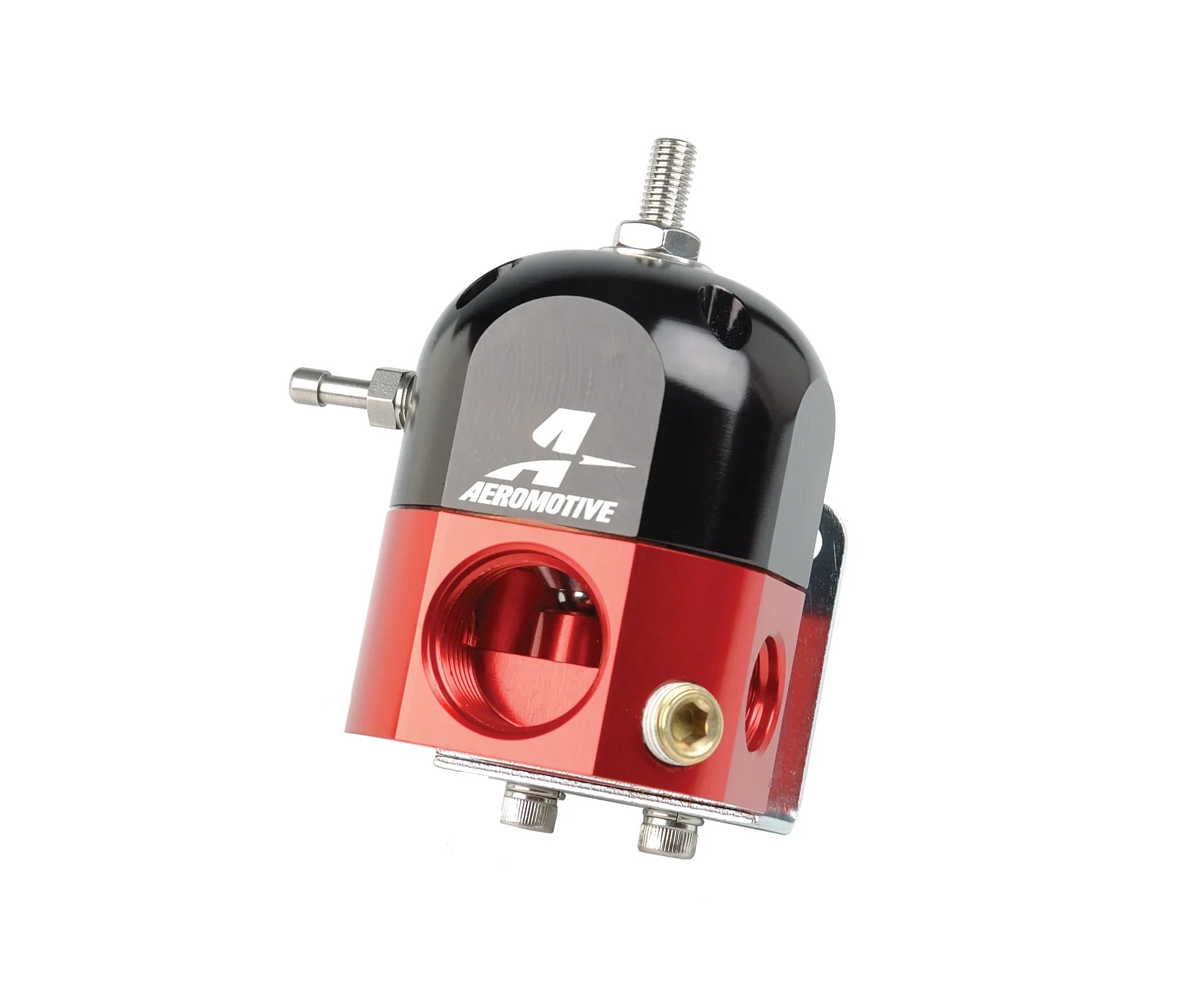

The A1000 return style Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or 'blow-through' supercharged engines.
Base fuel pressure adjustable from 3-15 PSI.
(1) ORB-10 inlet port and (1) ORB-08 return port.
(2) ORB-06 outlet ports and 1/8" NPT gauge port.
Fuel pressure rises on a 1:1 ratio when referencing boost.
Return style design provides the ultimate, dynamic fuel delivery system.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
EFI conversions will require a larger-than-stock return line for proper low pressure control.
Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
