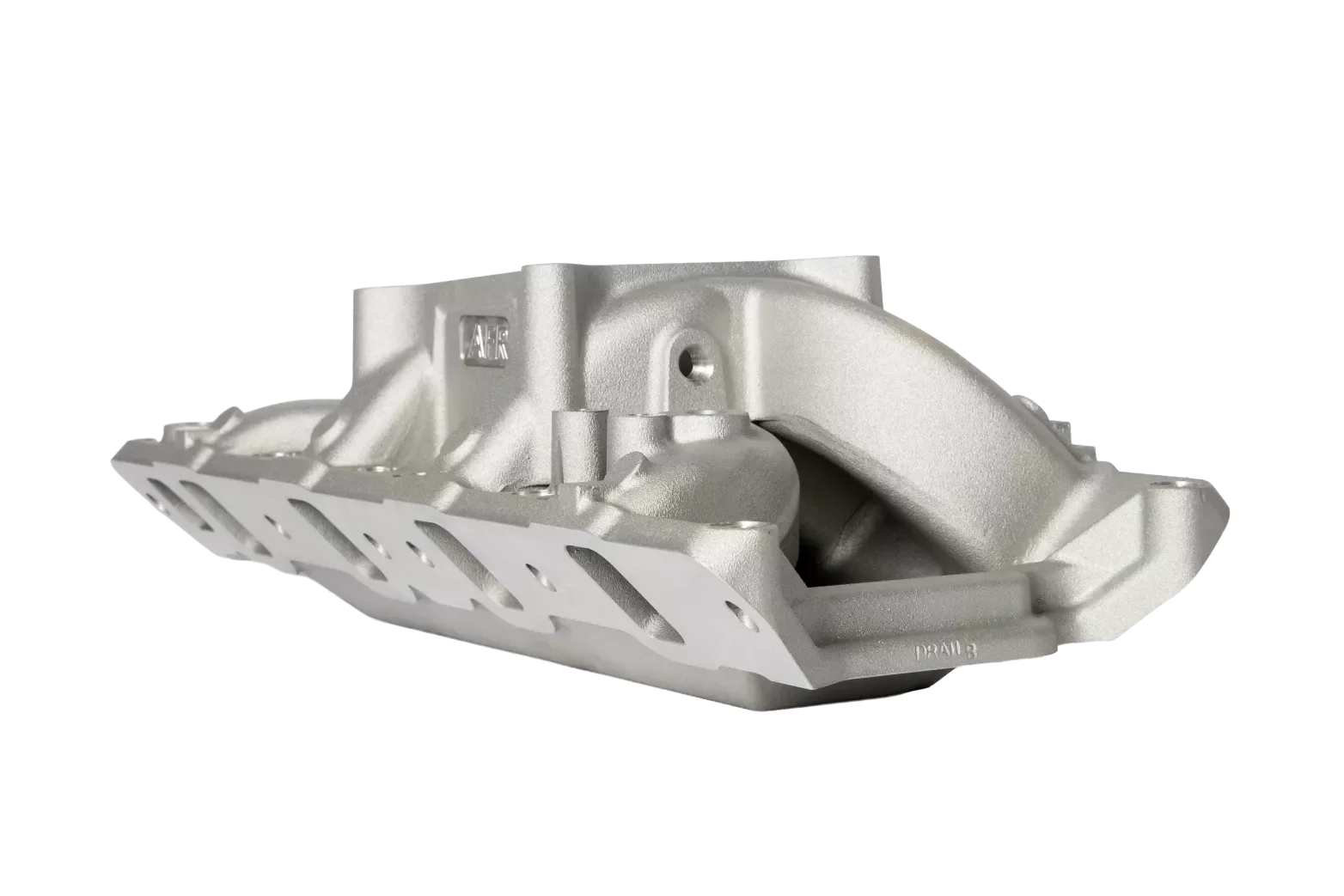

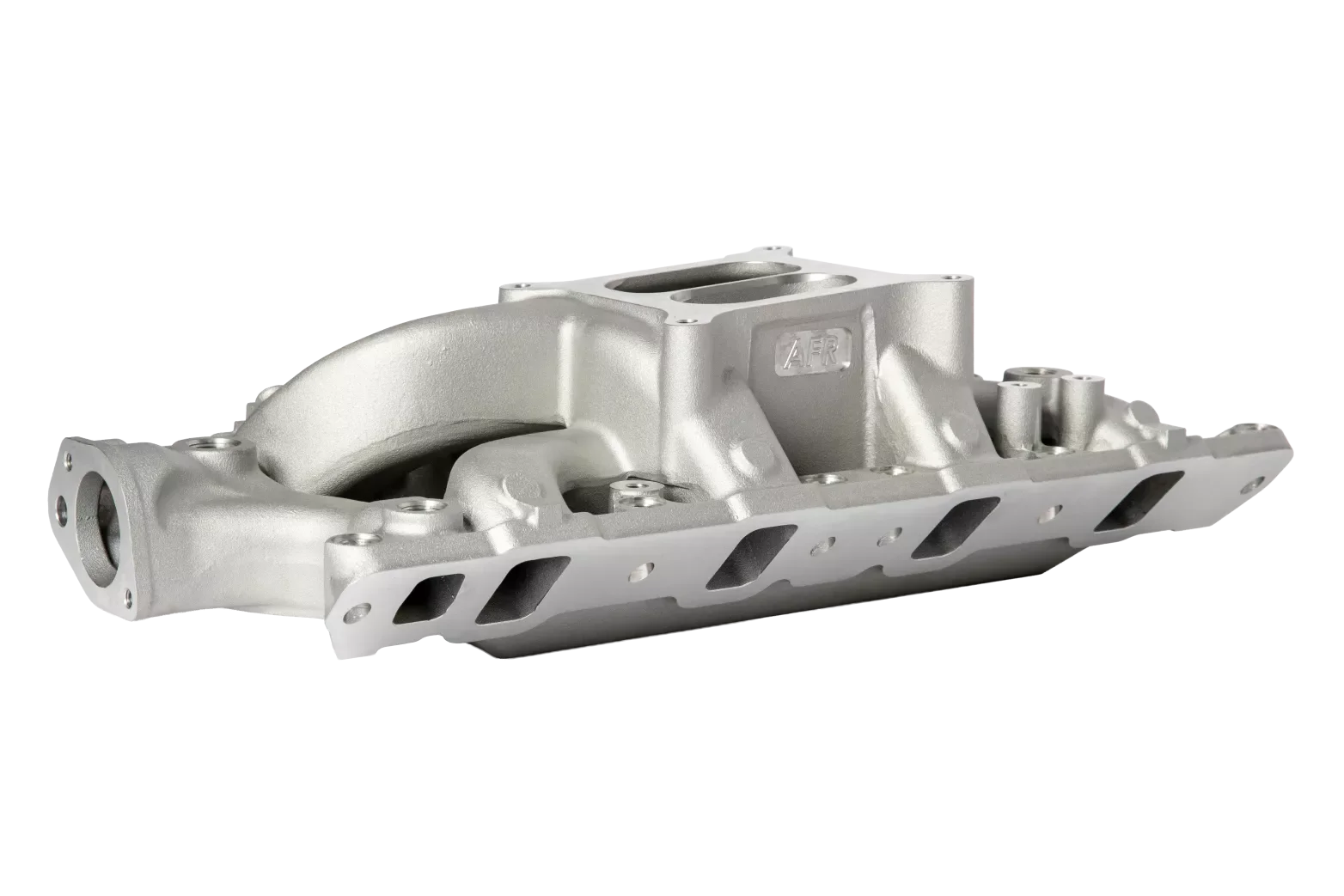

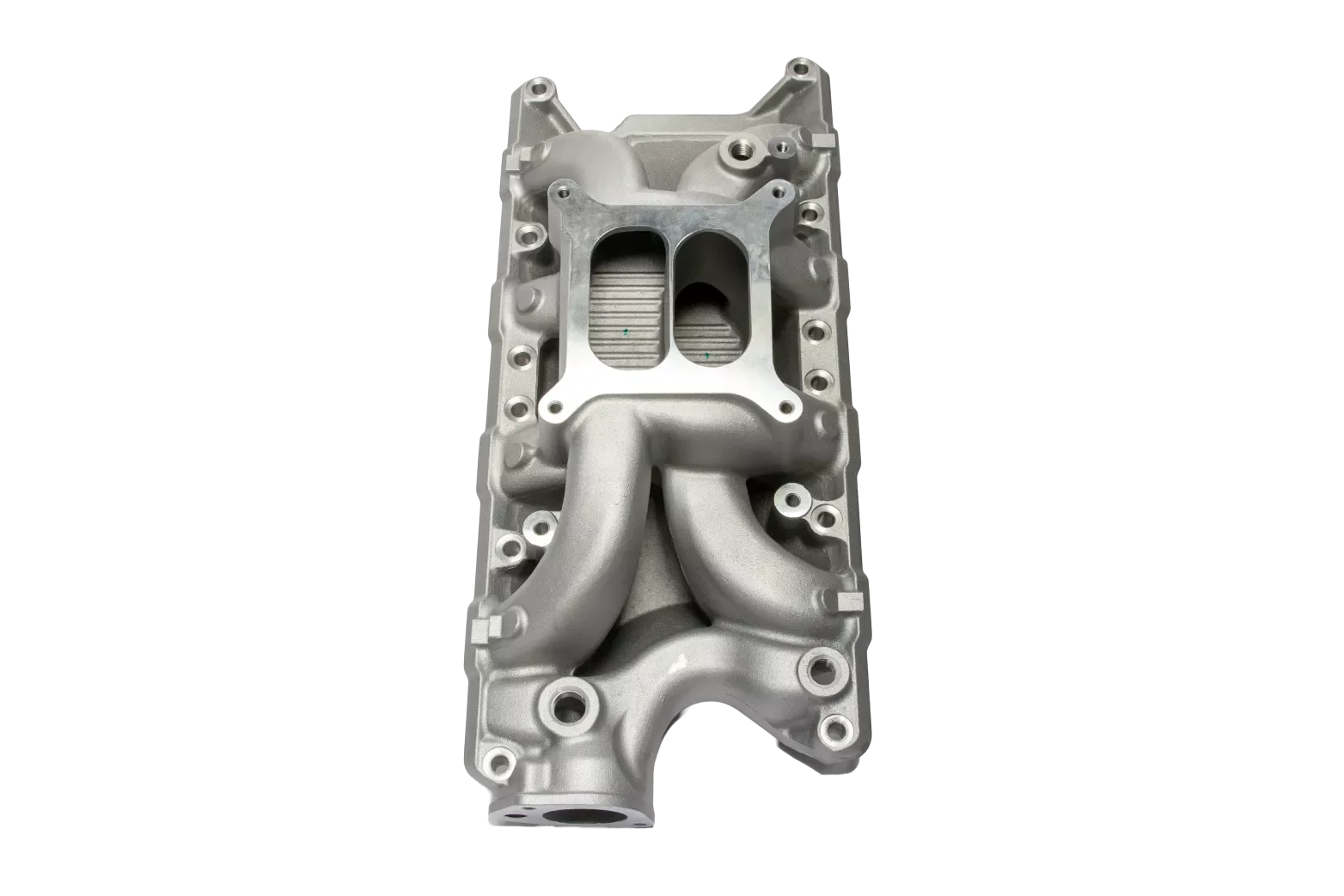

SBF Dual Plane Aluminum Intake Manifold
Designed for 8.2-deck Small Block Ford engines, this AFR-branded dual plane intake delivers excellent street performance and throttle response for 302, 331, and 347 Windsor combinations. The dual plane runner design enhances low- and mid-range torque while maintaining strong airflow for higher RPM operation. Ideal for street performance and street/strip builds, it pairs perfectly with AFR Small Block Ford cylinder heads to complete a high-performance Windsor top end.
Specifications & Features
Application289-302 & 331/347 Windsor 8.2 deckBasic Operating RPM Range1500-6000MaterialCast AluminumCarb Flange Height5.13" at rear of carb flange, 4.79" at front, both to China wall face, 4 degree flange Manifold TypeDual PlanePort Dimensions1.86" H x 1.07" W x 1/4 RadiusPort LocationsStockCompatible with165-185 Renegade & 185 Enforcer, May require port matching for optimum fit.Carb Flange4150 /4160
