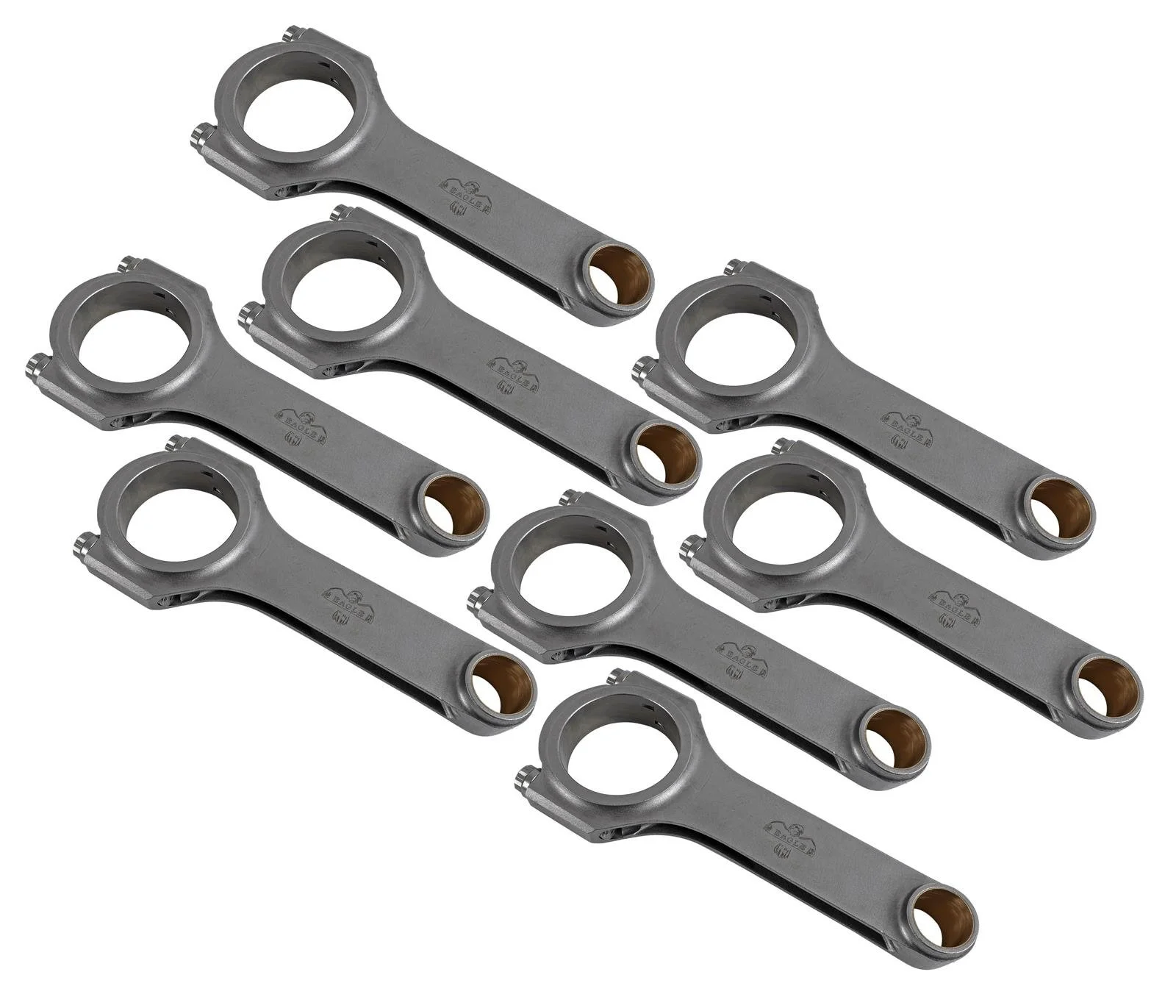

Eagle now offers their CRS lightweight H-beam connecting rods in their Featherweight series. The lighter design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap. They come with 220,000 psi rated ARP 2000 cap screw rod bolts, instructions, and rod bolt lubrication.
Connecting Rod Length Center to Center (in.):
6.535 in.
Connecting Rod Beam Style:
H-beam
Connecting Rod Material:
Forged 4340 steel
Wrist Pin Style:
Floating
Pin End Bore Diameter:
0.990 in.
Rod Journal Diameter (in.):
2.200
Big End Bore Diameter (in.):
2.3250
Quantity:
Sold as a set of 8.
Cap Retention Style:
Cap screw
Big End Width (in.):
0.990
Clearanced for Stroker:
No
Connecting Rod Bolt Brand:
ARP
Connecting Rod Bolt Diameter:
7/16 in.
Connecting Rod Bolt Material:
8740 chromoly steel
Fastener Tensile Strength (psi):
160,000 psi
Connecting Rod Bolt Head Style:
12-point
Approximate Connecting Rod Weight (g):
805
Pin End Width (in.):
1.125 in.
Weight Matched Set:
Yes
Remanufactured:
No
Magnafluxed:
No
