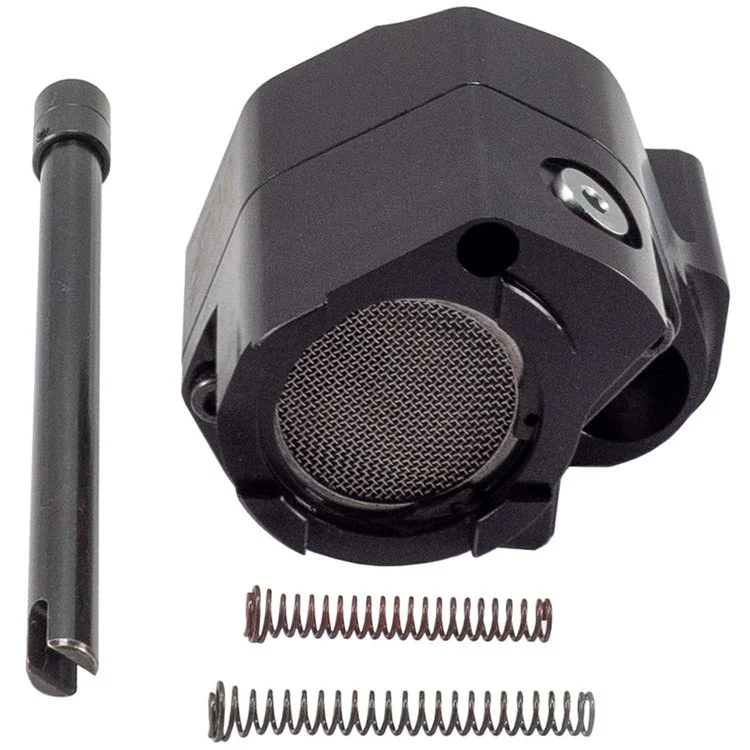

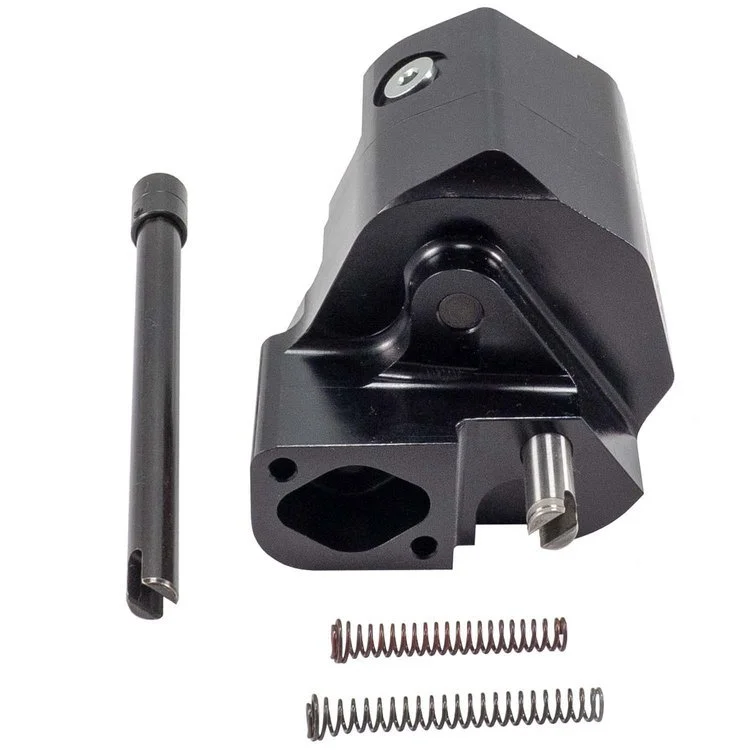

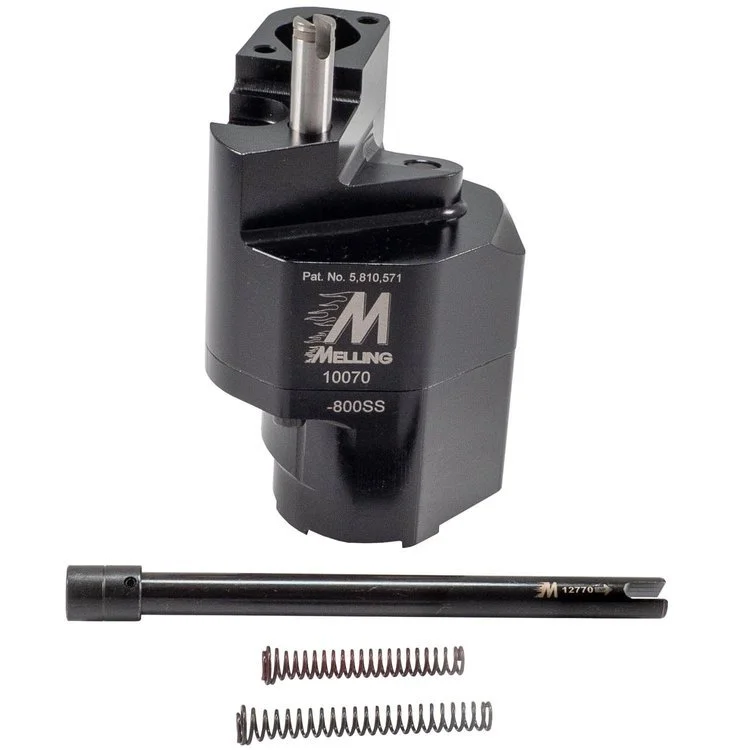

Aluminum billet high volume oil pump for street and strip applications with 8" deep pan.
25% increase in volume over stock oil pump.
Lightweight billet 6061-T6 aluminum housing and cover with a durable anodized hardcoat and high volume billet steel gears.
Pump shafts have been extended into the cover for support.
Pickup screen has been integrated into the pump body and features a stainless steel wire mess.
Multiple pressure settings and CNC manufactured to exacting tolerances and surface finishes.
Supercharged inlet allows for improved performance at high RPM's.
Includes 12770 chrome moly intermediate shaft and +10 psi and -10 psi relief springs.
The chrome moly drive shaft has been extended.
Additional Cover Shaft Support: Yes
Additional Volume Over Stock Percentage: 0.25
Adjustable Bypass Pressure: Yes
Alternate Pressure Springs Included: Yes
Anti-Cavitation: No
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Cover Material: Billet Aluminum
Drive Shaft Included: Yes
Drive Type: Drive Shaft
Gasket Or Seal Included: No
Gear Material: Billet Steel
Gear Type: Spur Gear
Gears Included: Yes
Governor Spinner Included: No
Grade Type: Performance
Guide Included: Yes
Hardware Included: No
Height: 6 in.
Housing Finish: Anodized
Housing Material: 6061-T6 Billet Aluminum
Inlet Size (in): Not Applicable
Intermediate Shaft Included: Yes
Manufactured For: GM SBC
Manufactured Pressure: (Pink) 70 PSI
Mounting Hole Diameter: 0.45 in.
Mounting Hole Quantity: 1
Nylon Bushing Included: No
Oil Pump Pressure Type: Standard Pressure
Oil Pump Type: Gear
Oil Pump Volume Type: High Volume
Optional Spring Pressure 1: (Red) 60 PSI
Optional Spring Pressure 2: (Brown) 80 PSI
O-Ring Included: No
Pickup Screen Diameter: 1.65 in.
Pickup Screen Included: Yes
Pickup Tube Diameter: 1.65 in.
Pump Cover Included: Yes
Screen Information: Screen Included 8"
Shaft Material: Chromoly Steel
Spacer Included: No
Timing Cover Included: No
Upgrade for Pump Number: M-77HV
Washers Included: No
Width: 4.25 in.
