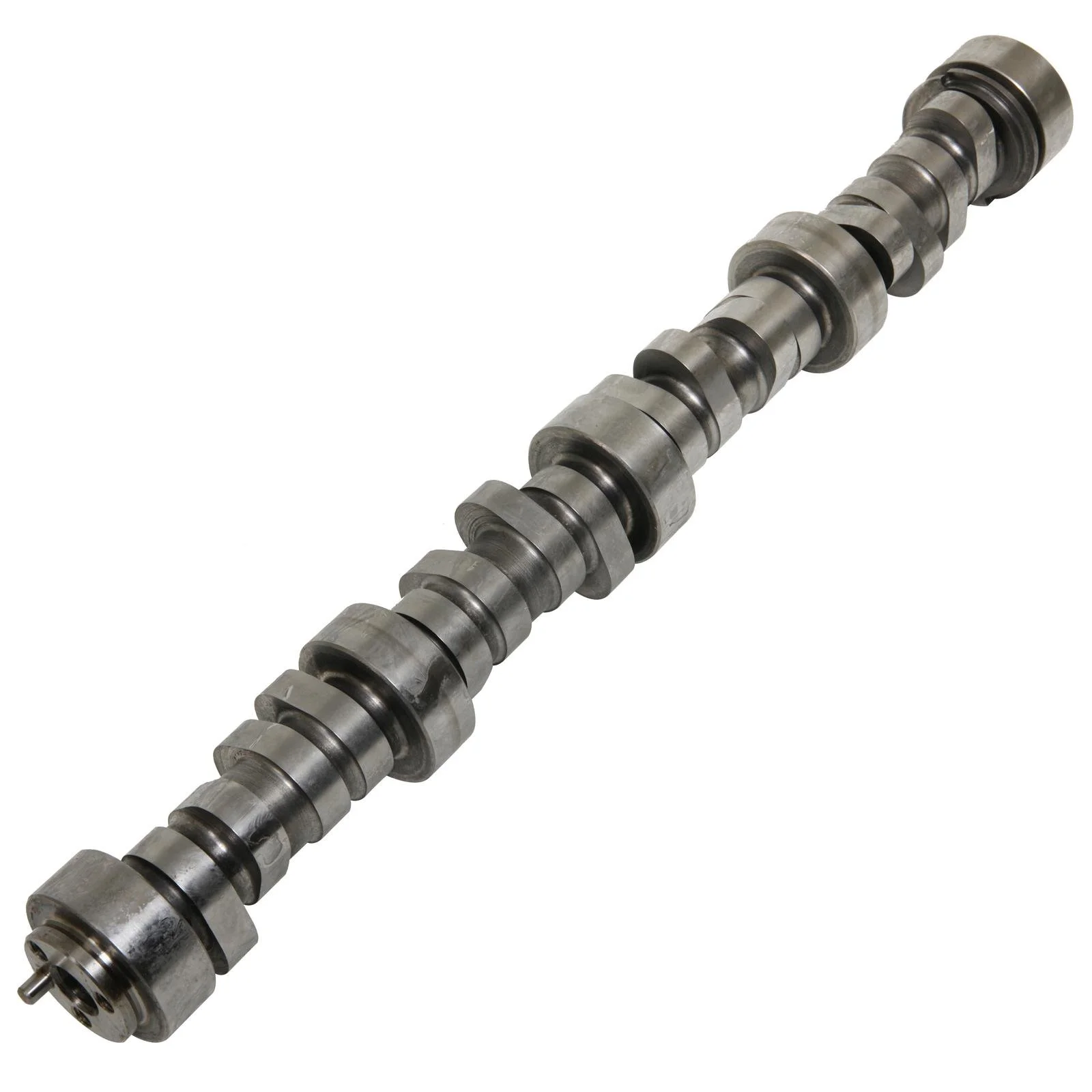

Camshaft, Hydraulic Roller, Advertised Duration 283/286, Lift .585/.585, Lobe Sep. 112, GM LS,
Camshaft Use:
Street/Strip
Camshaft Manufacturers Description:
Fair idle, good midrange/strong top-end power, 2,500-6,500 rpm powerband, computer modification recommended. Compression: 10.5:1 minimum. With 3-bolt cam gear mounting and rear integral LS1/LS6 camshaft sensor pick-up ring.
Basic Operating RPM Range:
2,500-6,500
Intake Duration at 050 inch Lift:
228
Exhaust Duration at 050 inch Lift:
230
Duration at 050 inch Lift:
228 int./230 exh.
Advertised Intake Duration:
283
Advertised Exhaust Duration:
286
Advertised Duration:
283 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.585 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.585 in.
Valve Lift with Factory Rocker Arm Ratio:
0.585 int./0.585 exh.
Lobe Separation (degrees):
112
Camshaft Gear Attachment:
3-bolt
Remanufactured:
No
Computer-Controlled Compatible:
Yes
Valve Springs Required:
Yes
Quantity:
Sold individually.
Notes:
This camshaft is not compatible with Active Fuel Management. An AFM delete kit and disabling the AFM through the ECM is required. Minimum 10:5:1 compression and LS1/LS6 style sensor pick-up ring. Custom computer tuning required.
Trick Flow® Track Max® Hydraulic Roller Camshafts for GM LS
Give your GM LS-powered hot rod significant horsepower and torque increases with a Trick Flow® Track Max® Hydraulic Roller Camshaft. These camshafts are dyno-proven to produce a wide power curve over the entire rpm range, not just at a particular rpm point or peak. The camshafts are cut from premium blank cores and checked for proper hardness before being precision ground to exact tolerances.
